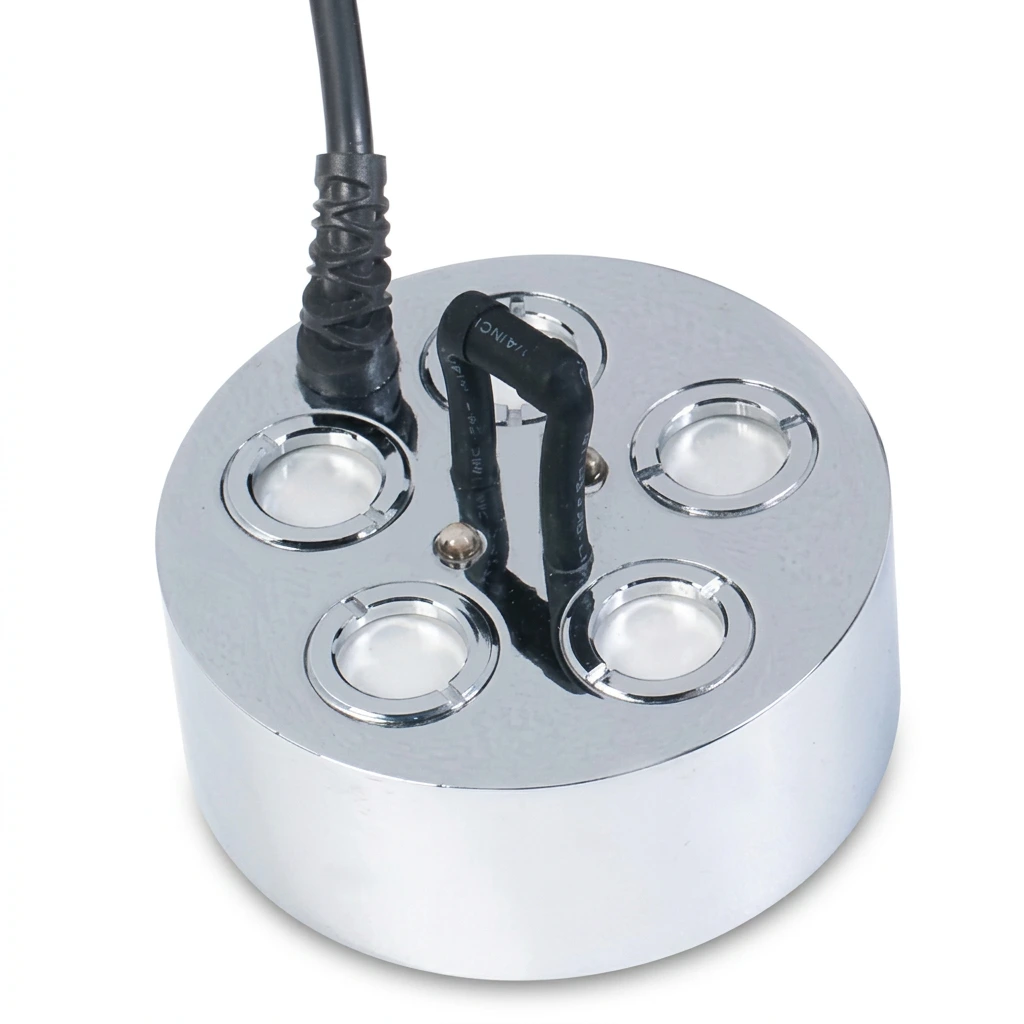

MistMaker 5 Ultrasonic Humidifier

MistMaker 5 Ultrasonic Humidifier

R2 125.00

Serious fog for larger spaces. The MistMaker 5 Ultrasonic Humidifier is a step up from smaller mist-makers, capable of atomising more than 1.6 litres of water per hour to raise humidity in an enclosed space.

  • High output: atomises over 1.6 litres per hour using 5 replaceable 20mm ceramic disks.
  • Cleaner air: ultrasonic oscillation produces negative ions that help tiny particles clump and drop out of the air.
  • More than humidity: also great for foliar feeding or aeroponic root feeding, as leaves and roots absorb the fine particles easily.
  • Ready to run: includes a 120W, 24V AC transformer.

Features 5× replaceable 20mm ceramic disks; transformer with 120W, 24V AC output (included). Avoid solutions with very high or very low pH (they cause corrosion); keep the atomising film clean and wash regularly to maintain fogging capacity, dissolving mineral-salt build-up with a rinsing agent like FlashClean. Add a MistMaker 5 Float to keep the head at the ideal depth.

In stock

SKU: ENV414 Category:

Description

The MistMaker 5 Ultrasonic Humidifier is a step up from smaller mist-makers, like the Sobo Mist Maker, capable of atomizing more than 1.6 liters of water per hour!

This ultrasonic fogger/humidifier features 5 x replaceable 20mm ceramic disks, powered by a transformer with a 120W, 24V AC output. (Included)

MistMaker’s ceramic plates converts electrical oscillation into mechanical oscillation, creating the micron sized fog or vapor. This oscillation also produces negative ions that attach to tiny particles in the air. This gives the particles an electrical charge, causing them to clump together and “fall” out of the air, leaving it cleaner.

The MistMaker 5 Ultrasonic Humidifier is a great tool to use to increase humidity in an enclosed space. The MistMaker can also be used for foliar feeding or aeroponic root feeding, as plant leaves and roots are able to absorb the minute water particles very easily.

Solutions with very high or very low pH values should be avoided, as this most cause corrosion. The atomizing film should be kept clean and often be washed to maintain maximum fogging capacity. Mineral salt buildups can be dissolved using rinsing agents like FlashClean.

  • The mist head should be installed flat (horizontally), with the water level 30 – 50 mm higher than the ceramic plates / 10 mm higher than the top of the square-shaped water level sensor.
  • Never touch the ceramic plates or the water level sensor. keep fingers well away from ceramic disks during operation.
  • The water level sensor will only function properly when TAP WATER is used. Distilled water will not allow the sensor to be triggered and may cause the unit to remain on when no water is present, causing burn-out.
  • The container that the unit is operating in should be large enough to accommodate the water splashing that will be generated by the unit’s action.
  • Do not use abrasive cleaners on any part of the unit.

Floats that house the MistMaker’s head are available – this allows the head to “float” at the right depth inside the water container, while the level of the water in the container recedes as the water is atomized.

An alternative method of housing the mist head is depicted below. This method uses a fan to distribute the fog/vapor around a space and the water level remains at the same height, being fed by the upside-down reservoir every time an air-gap is formed by the receding water line…

MistMaker misting box diy diagram

Other Specifications:

Amps = 4.5A

Cord length = 10m, fitted with E.U. plug (Get your UK to ZA Plug Adaptor now)

Mist head dimensions = 85mm diameter, 55mm height (incl. water level sensor)

Operating Temperature = 5 to 50 deg C
