R 4.00 – R 7.00

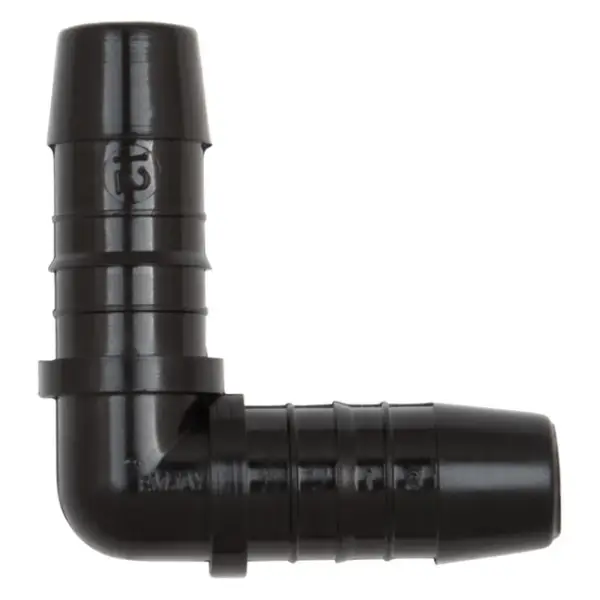

Elbow Pipe fitting. Elbow pipe fitting is used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe.
Fittings are made of black nylon, which is a tough and durable material. The reason these fittings are made black is to ensure the maximum resistance to UV degradation and to prevent the egress of red light into the pipe which could promote algae development.
These fittings have been tried and tested for over 35 years in the harsh South African sun and are still going strong.
Fittings are designed for use on polyethylene pipe manufactured to SABS-533 specifications (class 3 or class 6). When properly used with this specification of pipe, these fittings will not increase the pipe diameter by more than 10% as recommended by the South African Bureau of Standards. Any additional increase in pipe diameter beyond this can cause stress cracking, especially in pipe not made to specification or of inferior quality. These fittings are manufactured with a unique (and registered) barb configuration which is designed to take maximum advantage of the memory of polyethylene pipe, making it possible for the pipe to return to it’s original size between barbs and thus maximising the effectivity of the barbs and improving the strength of the join.
